10# 48×100 Channel Steel Beam 300 Series C Shape Beam For Building 5.3mm Thickness
Stainless steel channel offers a wide variety of features and come in a variety of dimensions at Stainless Shapes.
C-Channels in stainless steel are used in commerce and industry but also in machinery and equipment building. The use of stainless steel profiles is characterized by a high flexibility of composition and a fast and cost reduced construction (through the possibility of prefabrication in the steel production).
Product details
Product parameter
| Grade | 300 Series |
| Length | Customer's Required |
| Standard | GB,AISI,ASTM etc. |
| Technique | Cold bend |
| Surface Treatment | Clean, blasting and painting according to customer requirement |
| Thickness | 5.3mm |
| Application | Channel steel are one of the more common types of metal channels and are widely used in construction as building, wall, roof, and ceiling supports. The term C channel encompasses a wide variety of channel types, dimensions, and sizes since sheet metal can be roll formed to fit any specific requirements. |
| MOQ | 5tons. |
| Shipment time | Within 5-8 workdays after receiving deposit |
| Capacity | 50000 tons/month |
| Tolerance | ±1% |
Theoretical weight reference
| Specifications | Height (mm) | Leg width (mm) | Waist thickness (mm) | Cross-sectional area (cm²) | Theoretical weight (kg) |
| 5# | 50 | 37 | 4.5 | 6.928 | 5.438 |
| 6.3# | 63 | 40 | 4.8 | 8.451 | 6.634 |
| 6.5# | 65 | 40 | 4.3 | | 6.709 |
| 8# | 80 | 43 | 5.0 | 10.248 | 8.045 |
| 10# | 100 | 48 | 5.3 | 12.748 | 10.007 |
| 12# | 120 | 53 | 5.5 | | 12.059 |
| 12.6 | 126 | 53 | 5.5 | 15.692 | 12.319 |
| 14#a | 140 | 58 | 6.0 | 18.516 | 14.535 |
| 14#b | 140 | 60 | 8 | 21.316 | 16.733 |
| 16#a | 160 | 63 | 6.5 | 21.962 | 17.24 |
| 16#b | 160 | 65 | 8.5 | 25.162 | 19.752 |
| 18#a | 180 | 68 | 7 | 25.699 | 20.174 |
| 18#b | 180 | 70 | 9 | 29.299 | 23 |
| 20#a | 200 | 73 | 7 | 28.837 | 22.637 |
| 20#b | 200 | 75 | 9 | 32.837 | 25.777 |
| 22#a | 220 | 77 | 7 | 31.846 | 24.999 |
| 22#b | 220 | 79 | 9 | 36.246 | 28.453 |
| 25#a | 250 | 78 | 7 | 34.917 | 27.41 |
| 25#b | 250 | 80 | 9 | 39.917 | 31.335 |
| 25#c | 250 | 82 | 11 | 44.917 | 35.26 |
| 28#a | 280 | 82 | 7.5 | 40.034 | 31.427 |
| 28#b | 280 | 84 | 9.5 | 45.634 | 35.832 |
| 28#c | 280 | 86 | 11.5 | 51.234 | 40.219 |
| 30#a | 300 | 85 | 7.5 | | 34.463 |
| 30#b | 300 | 87 | 9.5 | | 39.173 |
| 30#c | 300 | 89 | 11.5 | | 43.883 |
| 32#a | 320 | 88 | 8 | 48.513 | 38.083 |
| 32#b | 320 | 90 | 10 | 54.913 | 43.107 |
| 32#c | 320 | 92 | 12 | 61.313 | 48.131 |
| 36#a | 360 | 96 | 9 | 60.910 | 47.814 |
| 36#b | 360 | 98 | 11 | 68.110 | 53.466 |
| 36#c | 360 | 100 | 13 | 75.310 | 59.118 |
| 40#a | 400 | 100 | 10.5 | 75.068 | 58.928 |
| 40#b | 400 | 102 | 12.5 | 83.068 | 65.208 |
| 40#c | 400 | 104 | 14.5 | 91.068 | 71.488 |
Why you choose us?
We are manufacturers, product price advantage, quality assured.
We have perfect production equipment, strong production strength, timely completion of each order.
The company aims to operate in good faith to meet customer needs product specifications and sizes are customized.
- Intimate after-sales service:
Perfect after-sales service, excellent product quality, choose us at ease.
Application
Channel steel are one of the more common types of metal channels and are widely used in construction as building, wall, roof, and ceiling supports. The term C channel encompasses a wide variety of channel types, dimensions, and sizes since sheet metal can be roll formed to fit any specific requirements.
FAQ
Q1:What is your terms of payment?
A: 30% T/T in advance, the balance 70% before delivery.
Q2: What is the terms of trade?
A: EXW, FOB, CIF, CFR, DDU.
Q3: What is the terms of packing?
A: Generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers'
requirement.
Q4: What is your delivery time?
A: For stocks, we could transport the goods to loading port within 7 days after received your deposit. For productiong period, it
usually takes about 15-30 days afer receiving the deposit.
Q5: Could you produce according to the samples?
A: Yes, we could customer-made by your samples or technique drawings, we could build the mold and fixtures.
Q6:Can we visit your factory?
A:Warmly welcome once we have your schedule we will pick you up .
|
|

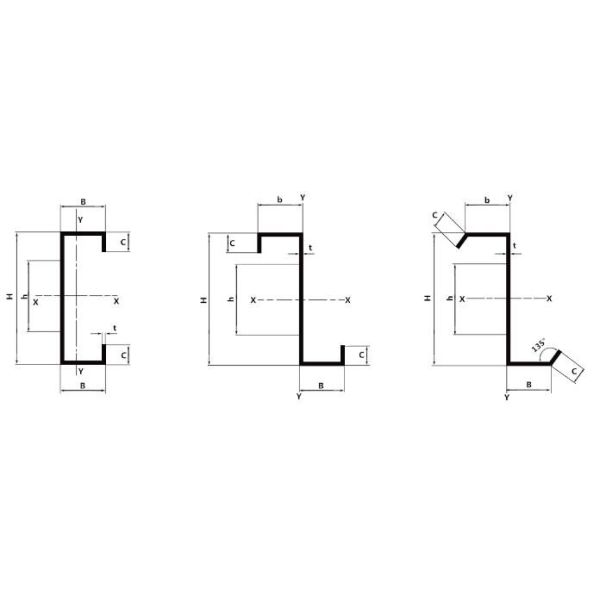

10# 48×100 Channel Steel Beam 300 Series c shape beam for building 5.3mm thickness Images
|
